Description

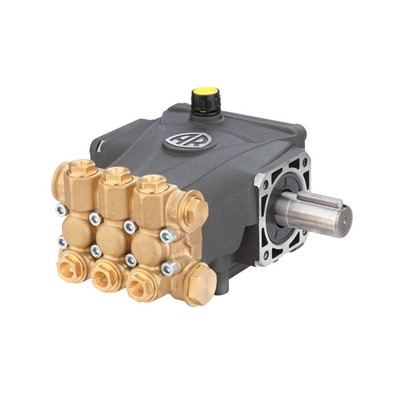

3-piston pump for use on cleaning units and industrial systems. Can be coupled to various types of motors, directly or with flexible joint. Pump body and cover in die-cast aluminum alloy. Side cover incorporates oil sight glass. Oversized friction bearings. Connecting rods in die-cast zinc-aluminum alloy. One-piece ceramic pistons. Pump head in pressed brass.
Specifications
- Product code 23384
- Version N
- Max flow 10 (lpm) 2.64 (gpm)
- Max Pressure 120 (bar) 1740 (psi)
- Power 3 (HP) 2.2 (kw)
- RPM 1450
- Net weight 5 (Kg)
- 1″ Shaft
